商品名稱: Handheld PCB surface copper thickness instrument mm615
商品編號: copper thickness instrument mm615
商品規格: copper thickness instrument mm615
凈重含量: copper thickness instrument mm615

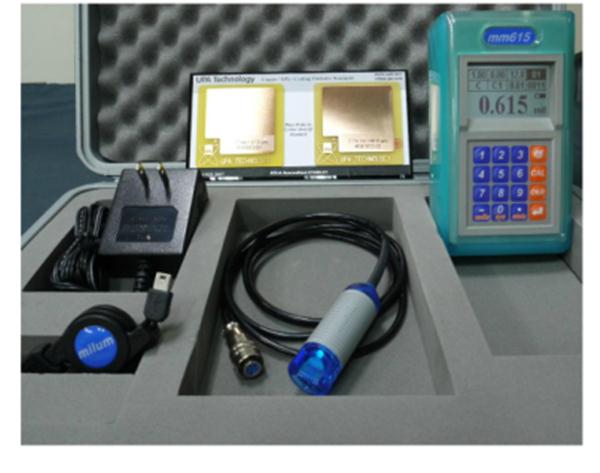

Handheld PCB surface copper thickness instrument mm615
mm615 rechargeable battery operated handheld
surface copper thickness measurement gage.
Compensation feature allows this gage to measure
printed circuit board surface copper thickness giving
very accurate and stable results.
It can measure before and after etched PC board
surface copper.
The unique design and simple operating display
allows the user to understand everything fully at a
single glance.
SCP-15W is a special surface copper measuring
probe, with different tip positioning choice which can
rapidly and precisely measure PCB surface copper
thickness.
☆ Micro-resistance principle
☆ Multifunction clear display, simple to operate
☆ Backlight bright LCD display
☆ Compensation feature to meet production standard.
☆ Set High and Low limits to detect when out of specification
☆ Simple to use and convenient to carry around
☆ Measures in mil or um
☆ Single standard calibration
☆ Selection of different probe tips based on measuring area
☆ Uses push and pull plug probe connector
☆ Replaceable probe tip design
☆ USB interface for computer download
☆ Rechargeable long life battery, economic and environmental
Optimum design using simple and friendly operating interface
SCP-15W Probe
Specification:
Measuring Range 0.01~8mil (0.25~200um)
Accuracy ±1% (based on Calibration Standard)
Resolution 1~3 digits (Fixed)
Board Thickness Limit No restriction
Memory 20,000 readings
Size (L) 130mm / (W) 70mm / (H)30mm
Data Output USB port
Weight 210 grams
Power 9V rechargeable Ni-MH battery, AC adapter included
Battery Life 1,000 times recharge
